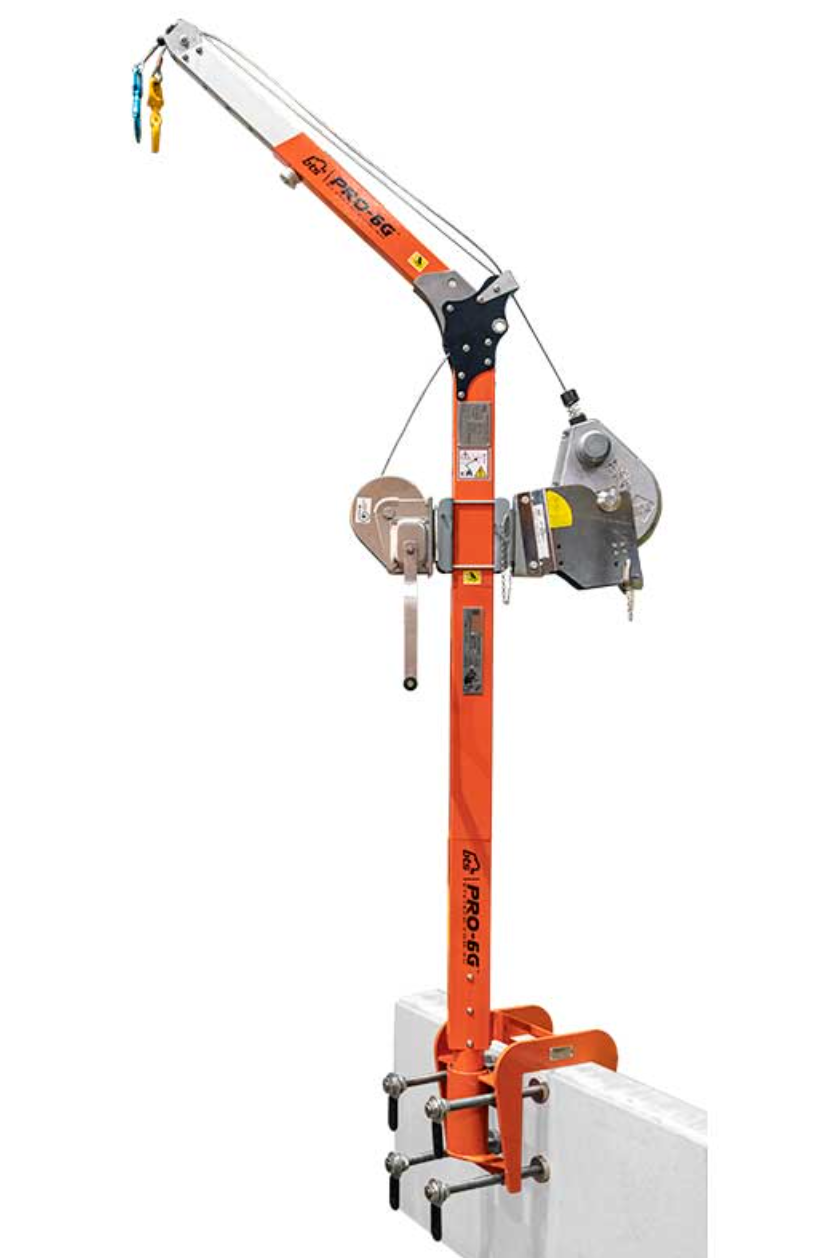

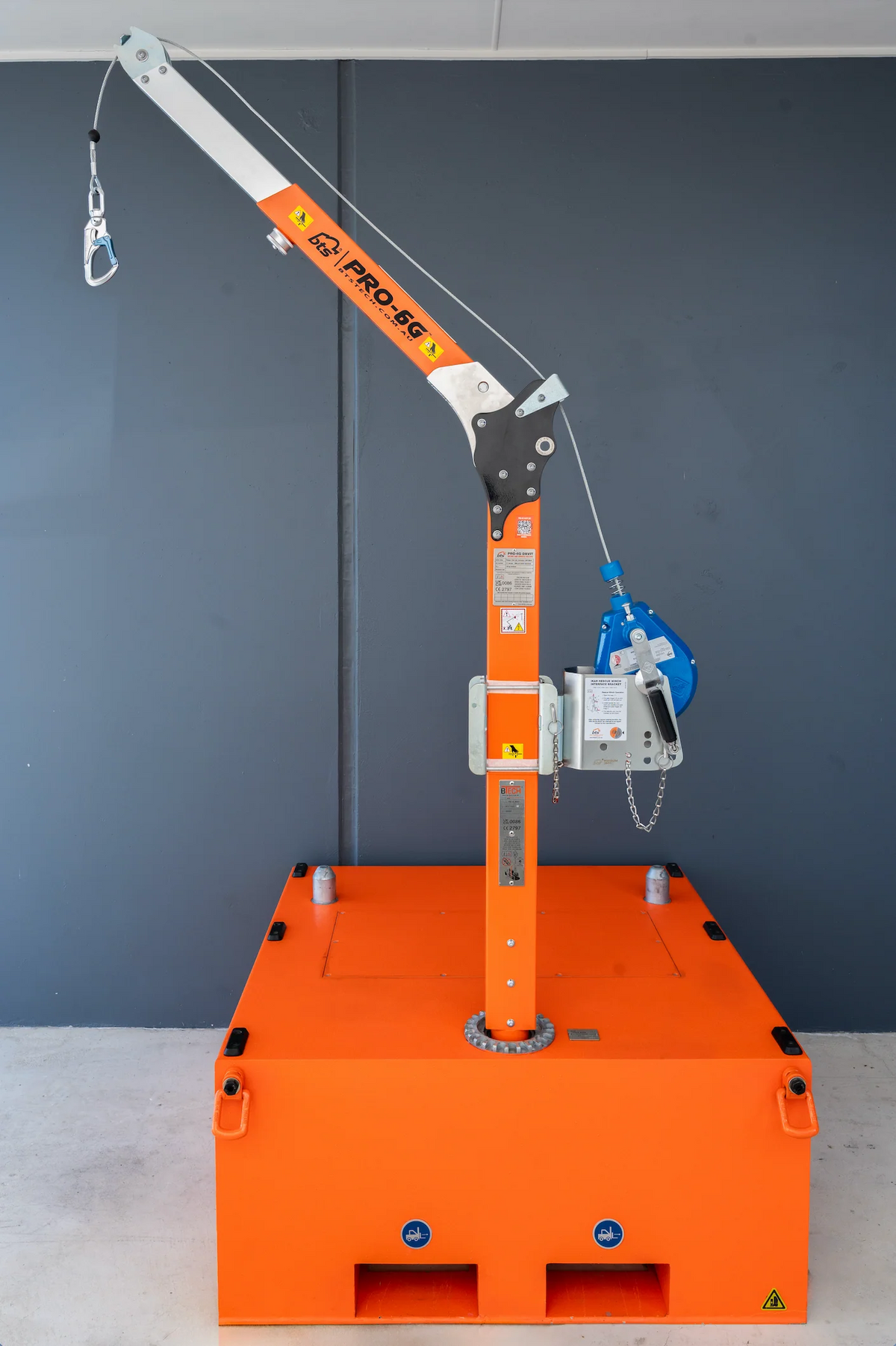

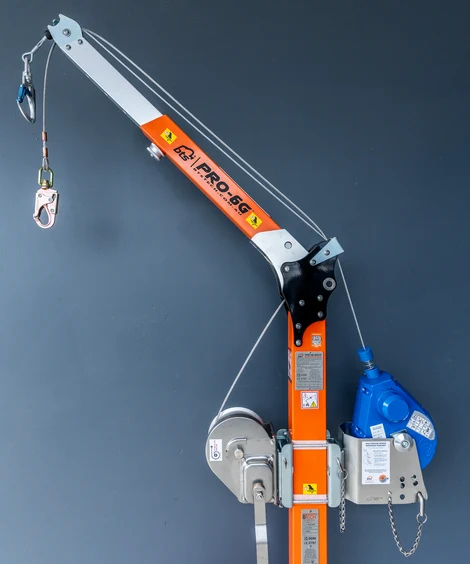

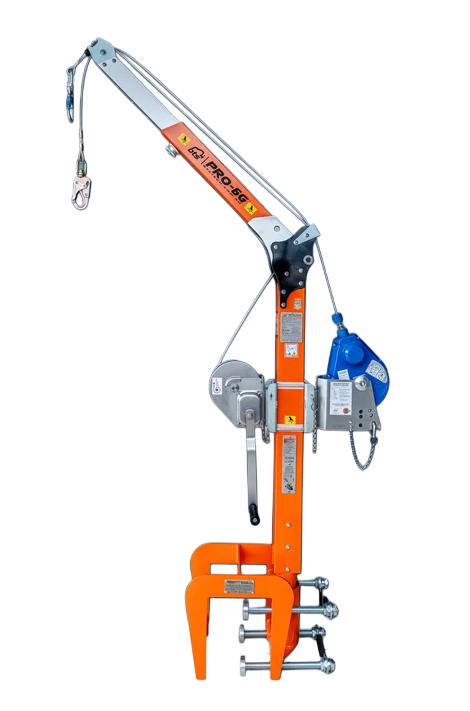

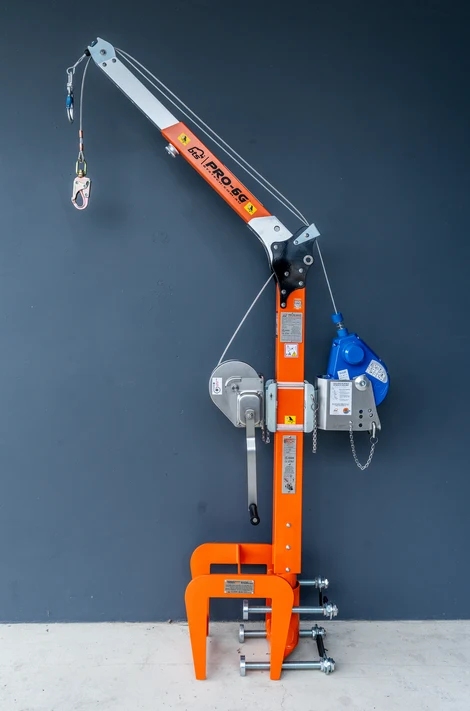

Beaver Technology Services (BTS) Pro-6G Davit System

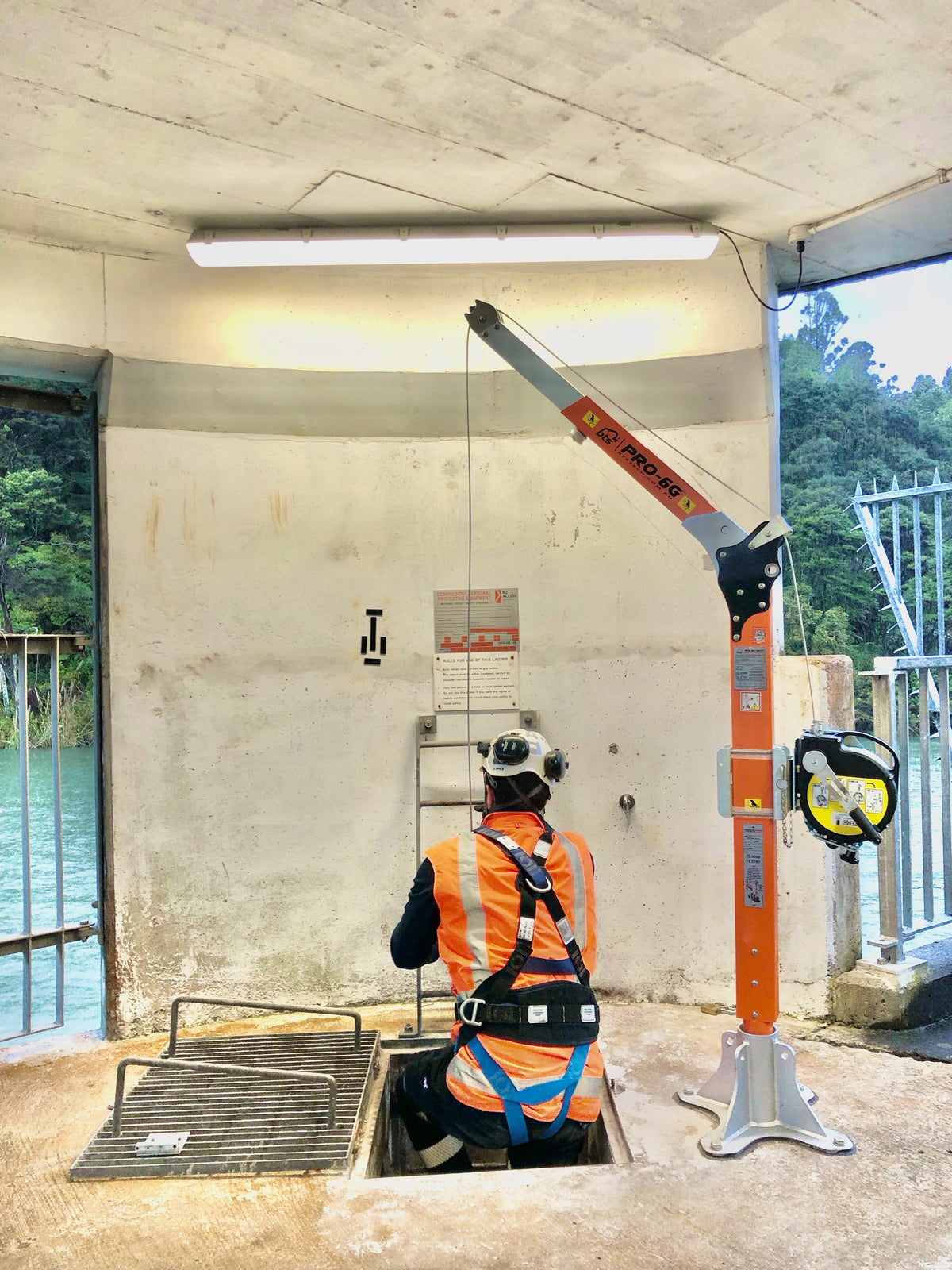

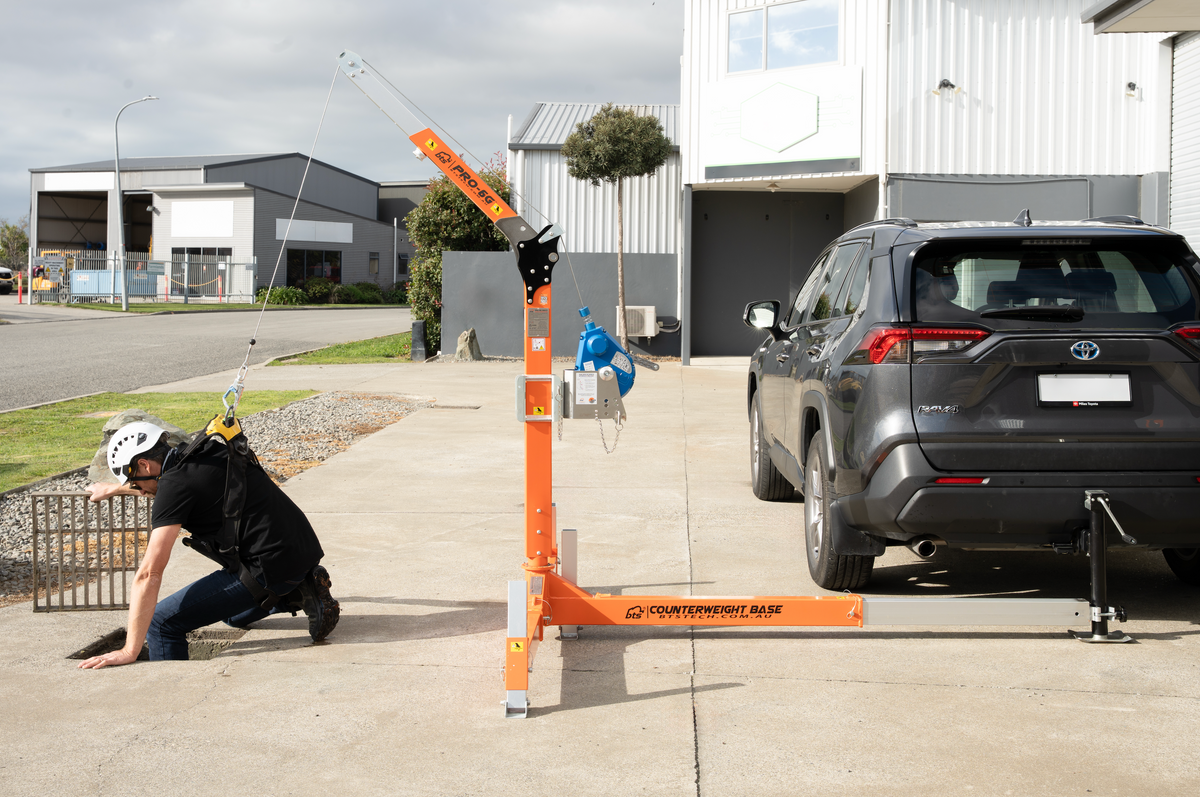

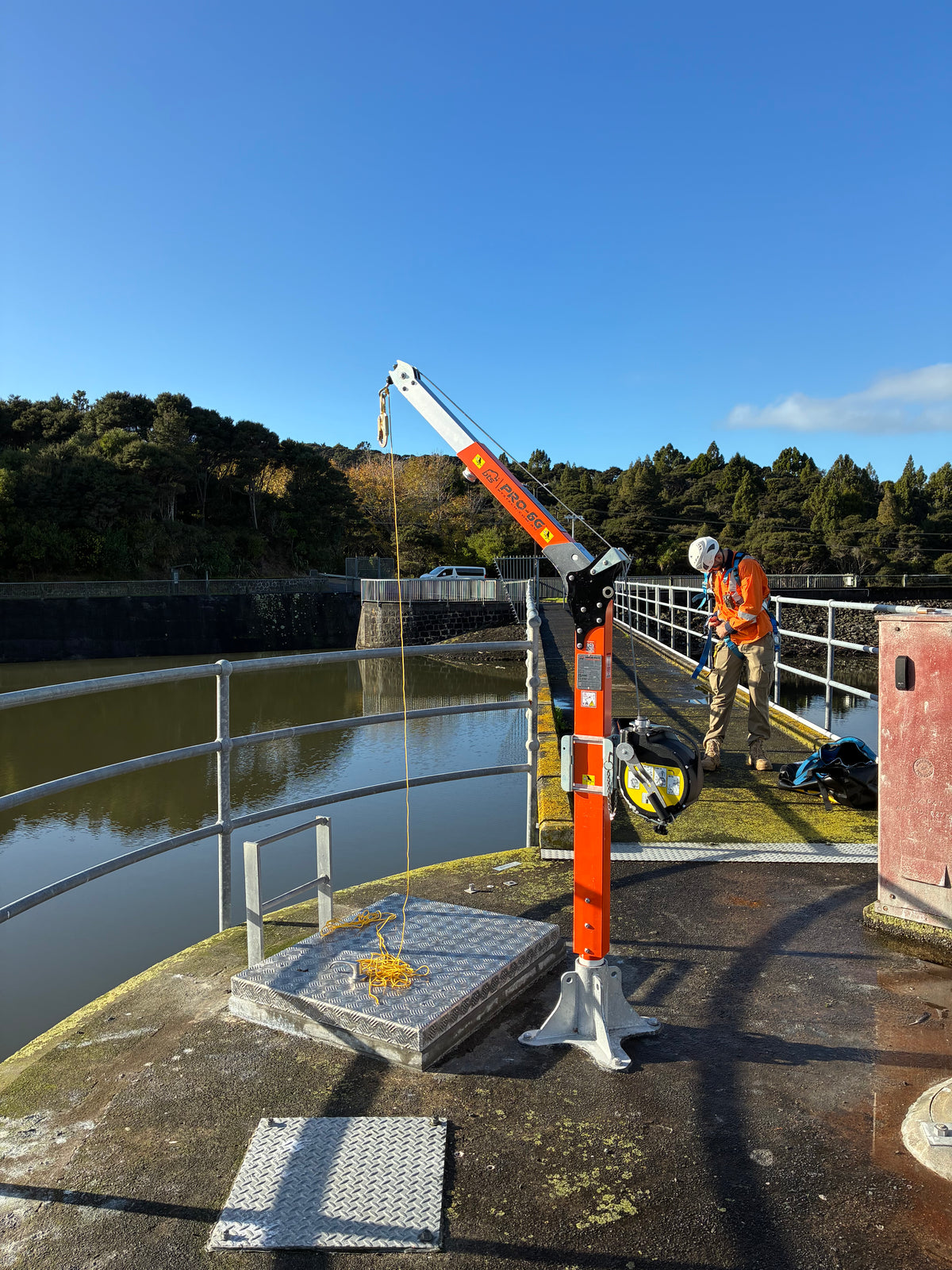

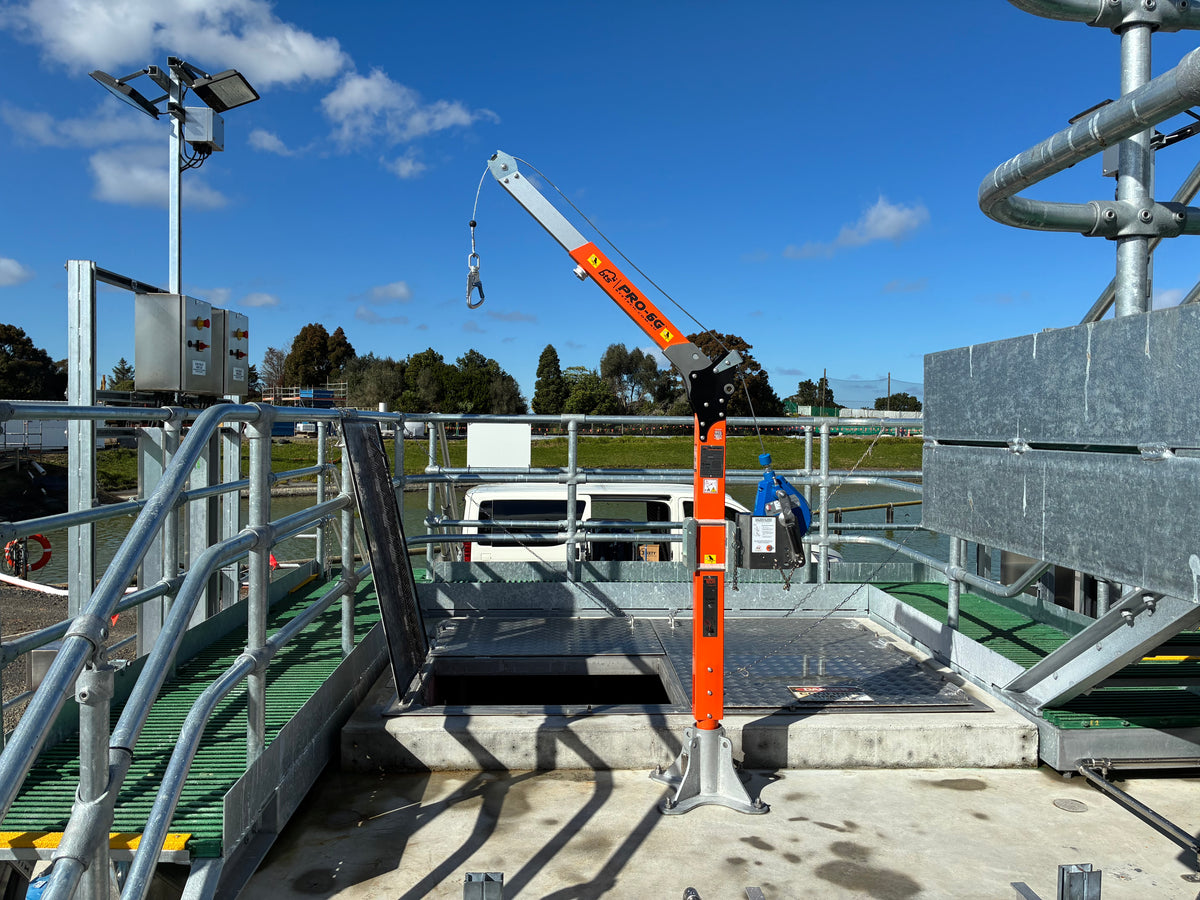

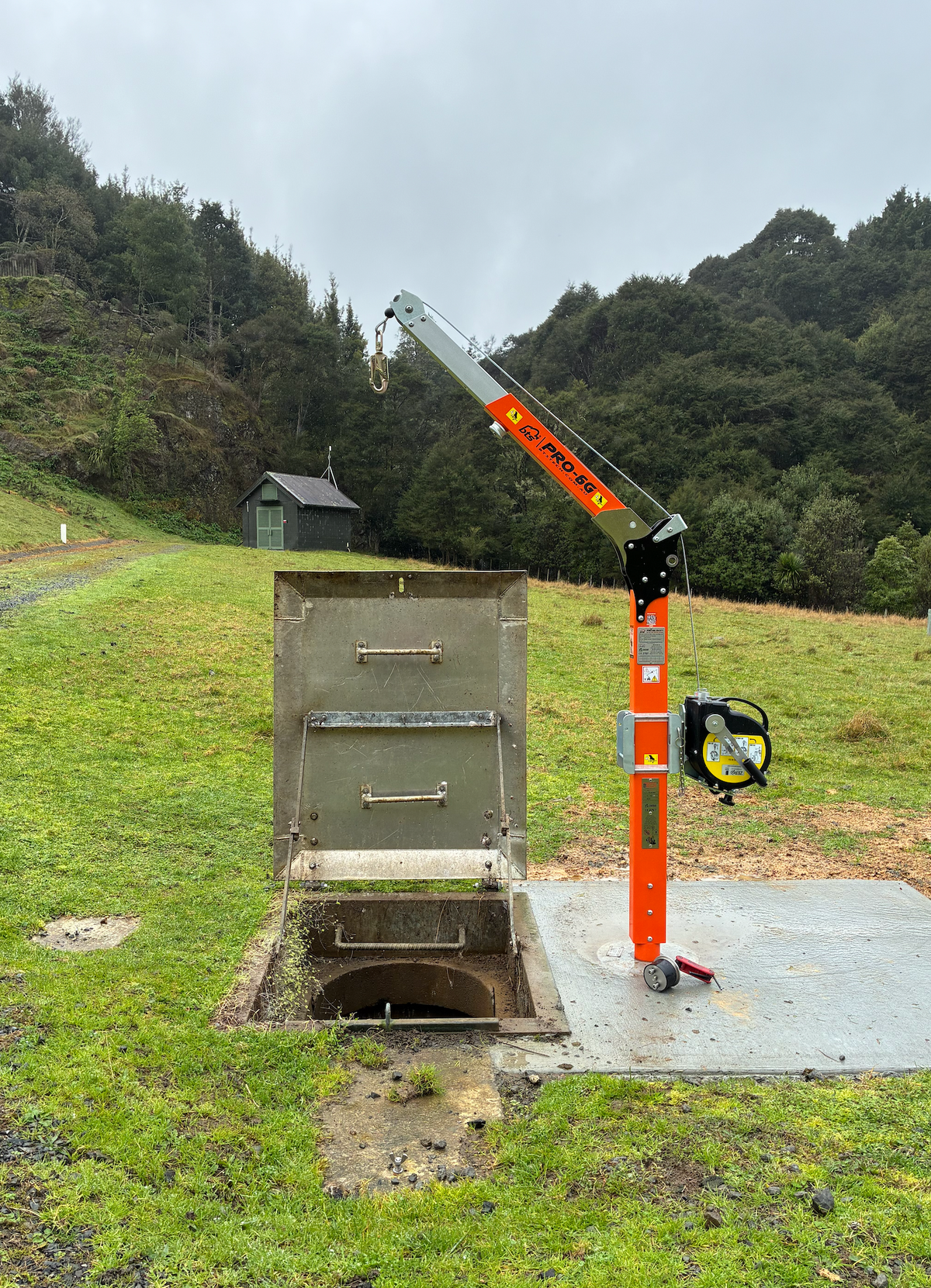

The Beaver Technology Services (BTS) Pro-6G Davit System features a modular design that allows the configuration to be tailored to specific access and rescue requirements. With a range of compatible brackets, winches and base options, the system can be adapted for confined space entry, worker retrieval and other suitable applications, including selected trench and excavation setups.
With a height range of 1.96–2.79 m and an offset of 0.5–0.7 m, the Pro-6G offers flexibility across different working environments. The appropriate configuration depends on the intended application, mounting arrangement and associated equipment.
Features:
- Manufactured using 6061-T6 Aluminium
- Powder-coated with AkzoNobel Interpon D610 advance coating
- Modular construction of up to 4 pieces allowing for ease of transport and storage
- Inbuilt visual fall & overload indicator
- 5 Off set adjustment settings from 0.5 to 0.7m with self locking indexing pin
- No special tools required for assembly or disassembly
- Suitable for both man and material lifting/lowering applications
- W.L.L. 140kg material handling
- Primary anchor is Man rated to 12kN (136kg including all tools and clothing)
- Secondary anchor is rated 15kN (anchor point for winch operator)
- Suitable for use in both permanent and portable davit bases
- Swivel 360 degrees
- Quick connect winch interface bracket
- Independently certified by BPEQ Registered Engineer for Queensland
- Patent Pending System
Complies with product design, manufacturing and testing requirements of AS/NZS 5532/ EN795/ ANSI Z359.18
