Beaver Technology Services (BTS) Pro-3G Davit System

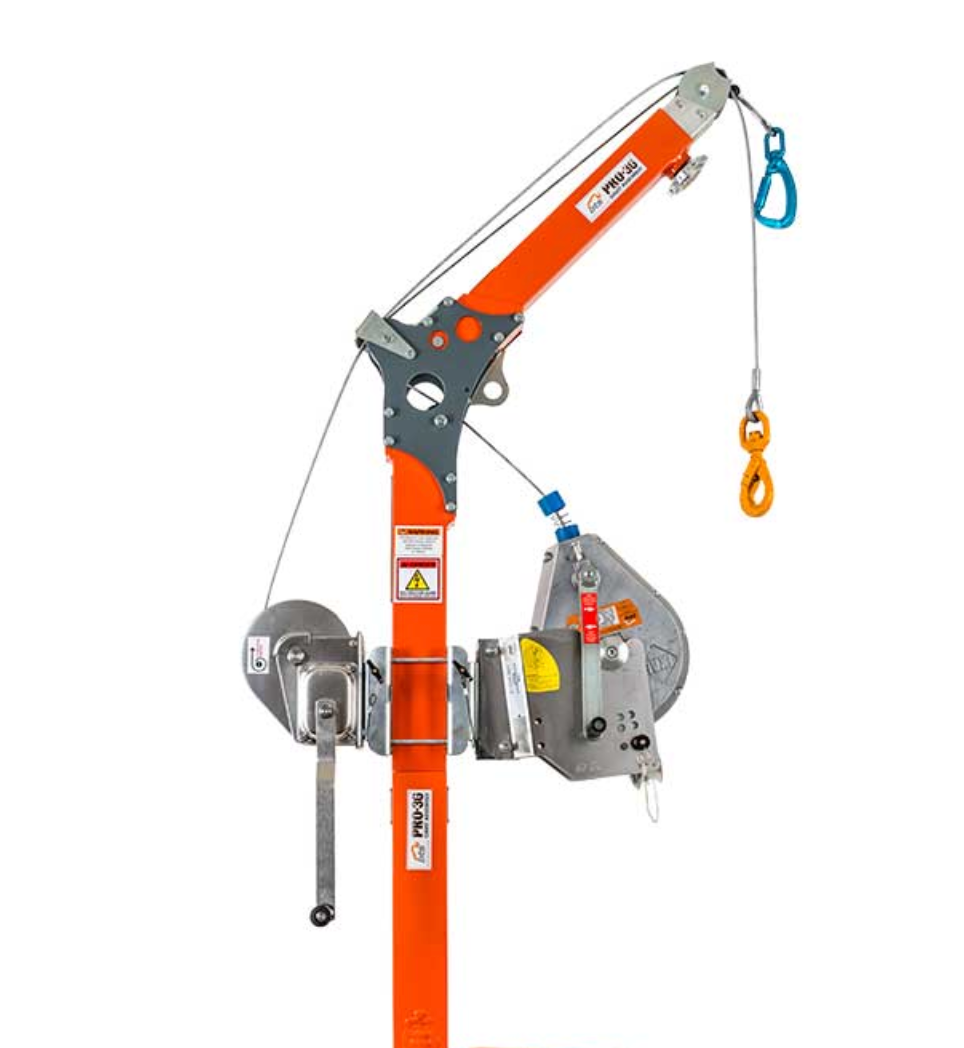

The Beaver Technology Services (BTS) Pro-3G Davit System

is a lightweight aluminium modular unit that is easy to set up by just one person. With a built in fall and davit overload indicator, it is rated to 18kN.

The Pro-3 davit system is a modular design allowing the user to create a davit setup for their individual requirements. With a range of brackets, winches and bases available, the Pro 3 Series is an ideal davit for confined space entry with a height of 1.9 - 2.2m and a offset of 0.5 to 0.7m.

Features.

• Lightweight material graded 6061-T6 Aluminum
• Powder-coated Safety Orange to increase visability around a workplace
• Modular in construction with no one component heavier than 10kg
• Easy to store and can be transported by 1-person
• Built in fall and davit overload indicator
• Multi-offset mast with a variable reach from 0.5m to 0.7m
• No special tools required for assembly or disassembly
• Can be set-up for use with both man-rated and material-rated applications to a max WLL of 140kg - (Material Rating Only)
• Suits both fixed and portable davit bases with a mast rotation of 360degrees
• Rated secondary anchor point on vertical mast for connection by the winch operator or stand-by person
• Quick release winch interface brackets to suit all BTS winches and other reputable winch brands in the market


Complies with product design, manufacturing and testing requirements of AS/NZS1891.4, AS/NZS 5532-2013 & CE EN795
