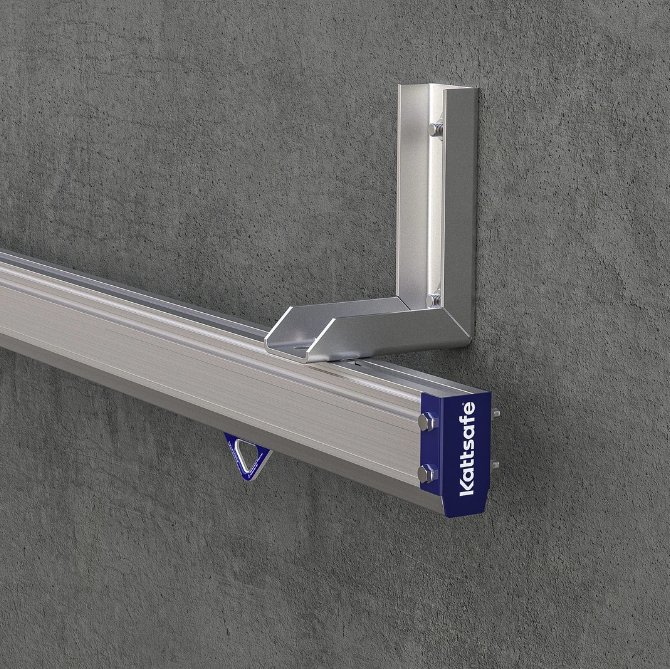

Kattsafe OH8 Rigid 130 Rail System - Side/Floor Mount – 200mm

The Kattsafe OH8 Rigid 130 Rail is a proprietary system that provides efficient fall arrest and rope access for multiple users accessing facades, roofs and machinery for maintenance.

Rigid rails provide significant spanning capabilities, making them very versatile where there are limited support structures. The high strength aluminium construction, along with the unique t-bolt assembly makes it a very simple and easily adaptable system to install.

  • Fall arrest/rope access use

  • 21kN rated (fall arrest)/18kN rated (rope access)

  • Side/floor mount – 200mm

  • Up to 490kg per trolley point load

  • Ideal for long spanning requirements up to 4.0m standard or 6.0m using long span attachment

  • Curving ability down to 1000mm radius.

  • Weight: 4.5kg/per linear metre of rail section

Compliance:

Kattsafe rigid rail is designed to conform with requirements of the Australian and New Zealand Standards AS/NZS 5532:2013 AS/NZS/ISO22846, AS/NZS1891, AS1418.13 and relevant codes of practices and guidelines.
