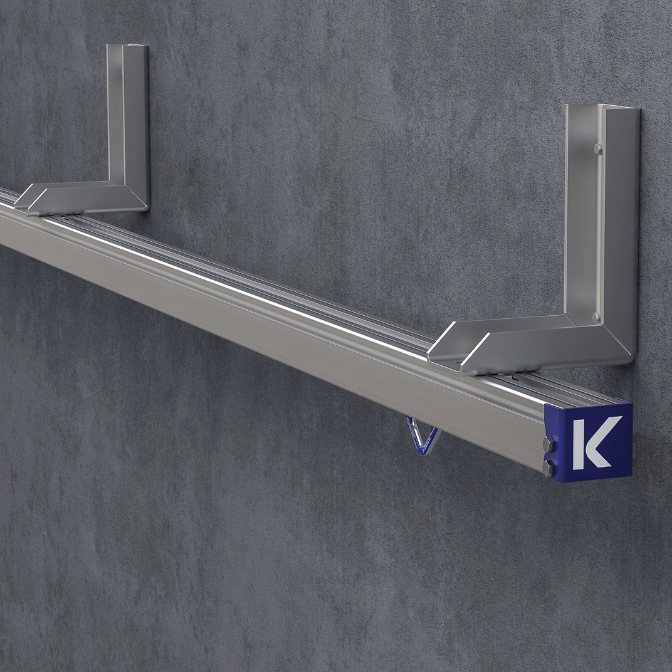

Kattsafe OH28 Rigid 80 Rail System - Side/Floor Mount – 200mm

The OH28 Rigid 80 Rail is a proprietary low profile system that provides efficient fall arrest and rope access for multiple users accessing facades, roofs and machinery for maintenance.

  • Fall arrest/rope access use

  • 21kN rated (fall arrest)/18kN rated (rope access)

  • Side/floor mount – 200mm

  • Up to 600kg per trolley point load

  • Increased point load ability for glass replacement requirements

  • Curving ability down to 1000mm radius

  • Ideal for compact and out of sight requirements

  • Simple installation using the t-bolt mounting system to outer cavity wall

  • Allows attachment of suspended ceiling systems to side of track where required

  • Weight: 5.9kg/per linear metre of rail section

Compliance:

Kattsafe rigid rail is designed to conform with requirements of the Australian and New Zealand Standards AS/NZS 5532:2013 AS/NZS/ISO22846, AS/NZS1891, AS1418.13 and relevant codes of practices and guidelines.
