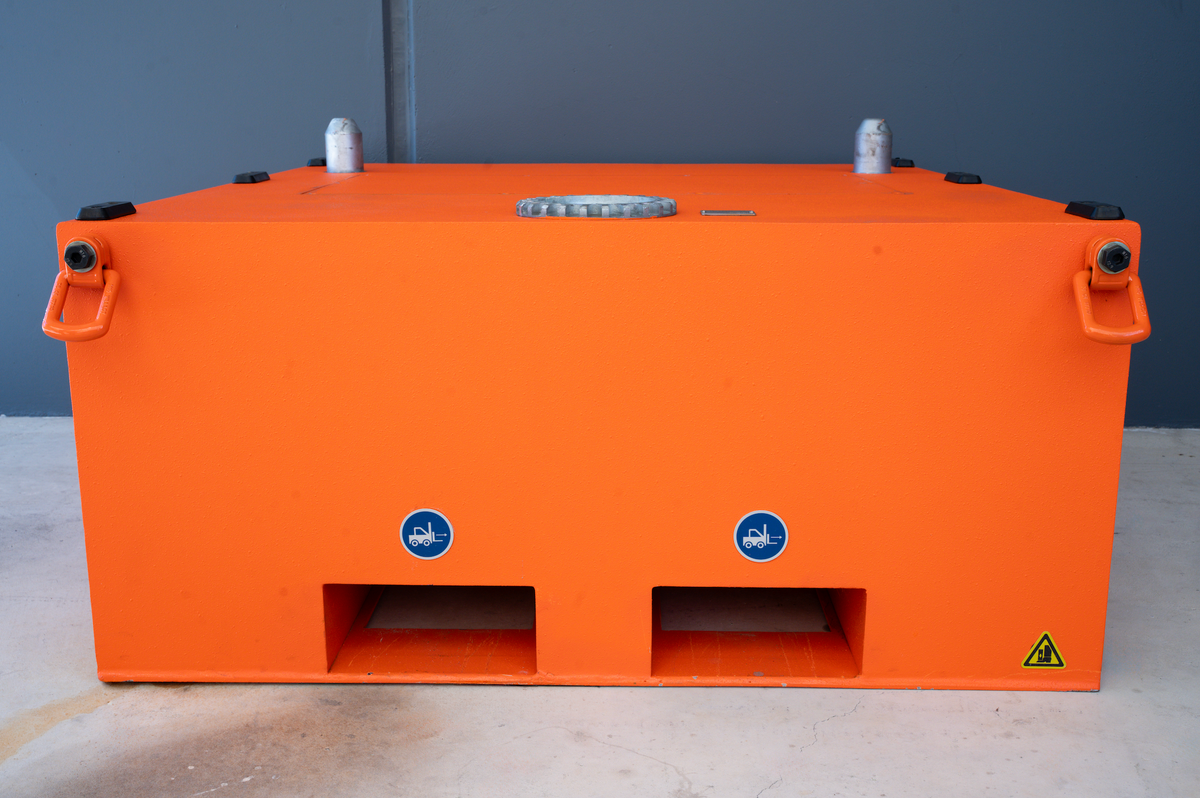

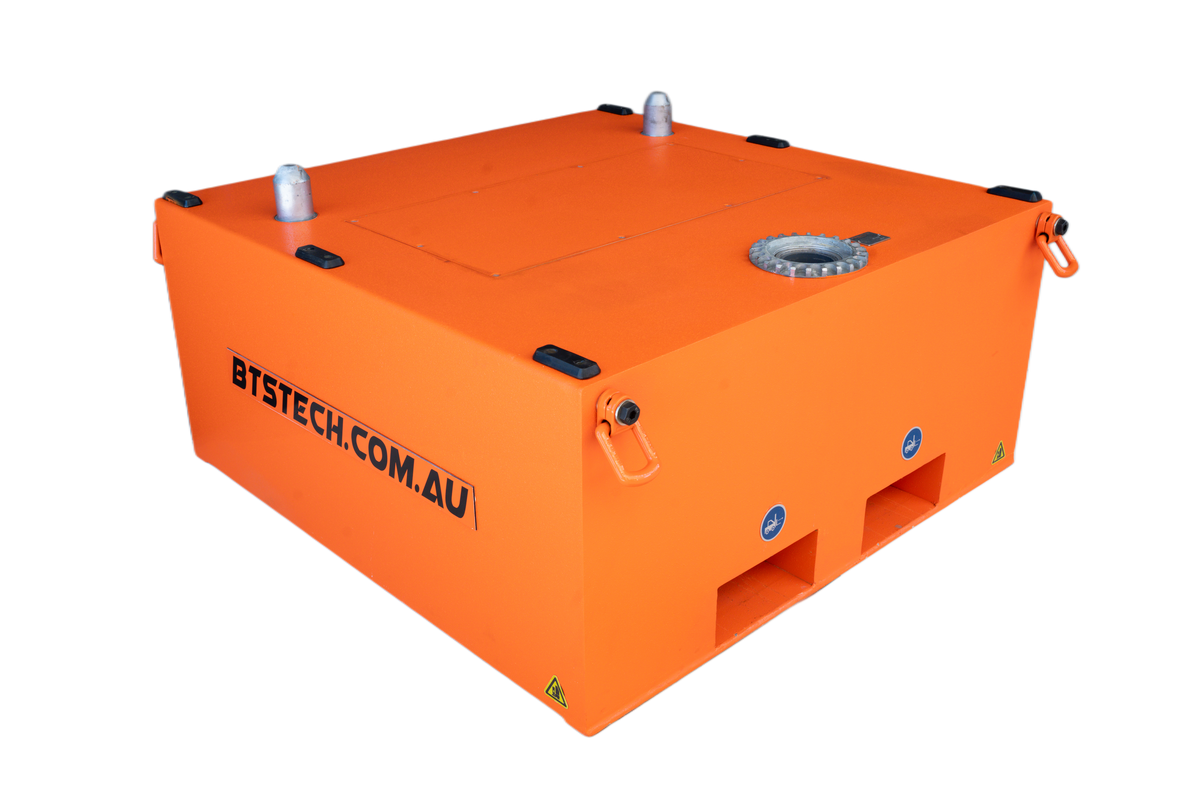

BTS Mobile Anchor Cube Base
When configured with the Portable Horizontal Anchor Mast 70208M and the appropriate Type 2 and/or Type 3 inertia reels, the system can provide fall protection for up to 2 workers. When paired with a Type 3 rescue winch, the system can also be configured for horizontal confined space entry and rescue applications, providing an engineered anchorage and recovery point where access to the confined space is required from a horizontal position.
Features:
- Self-counterweighted base with built-in lifting pockets.
- Overall dimensions of 1.14 x 1.14 x 0.53m and weighing est. 1400kg (3,087 lbs).

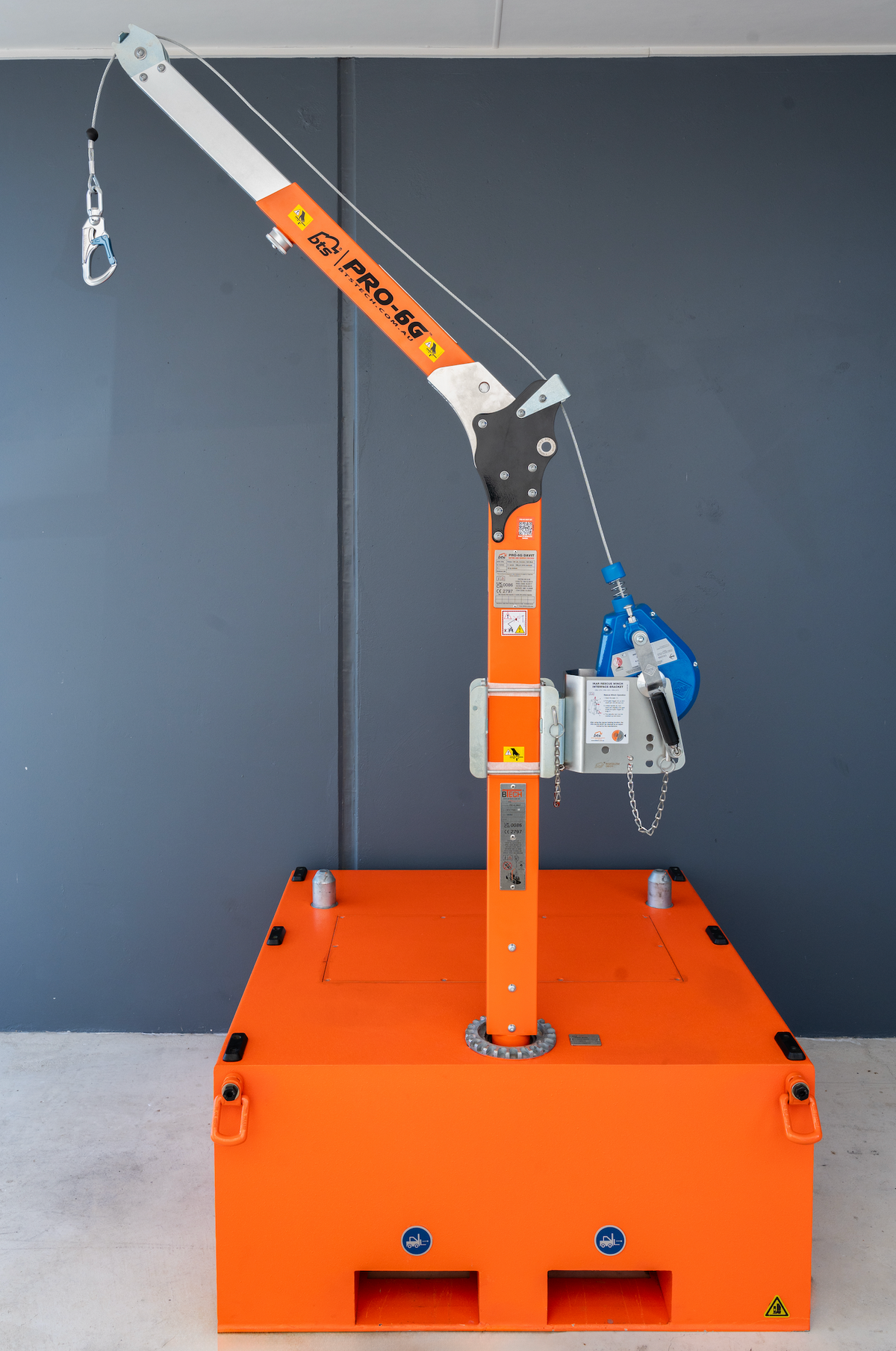

- Can be used with our BTS Portable Horizontal Anchor Mast 70208M and 2-person fall arrest system with optional type 3 rescue recovery winch feature or our with our BTS 6G Davit Systems.
- Portable Solution
- Forklift pockets

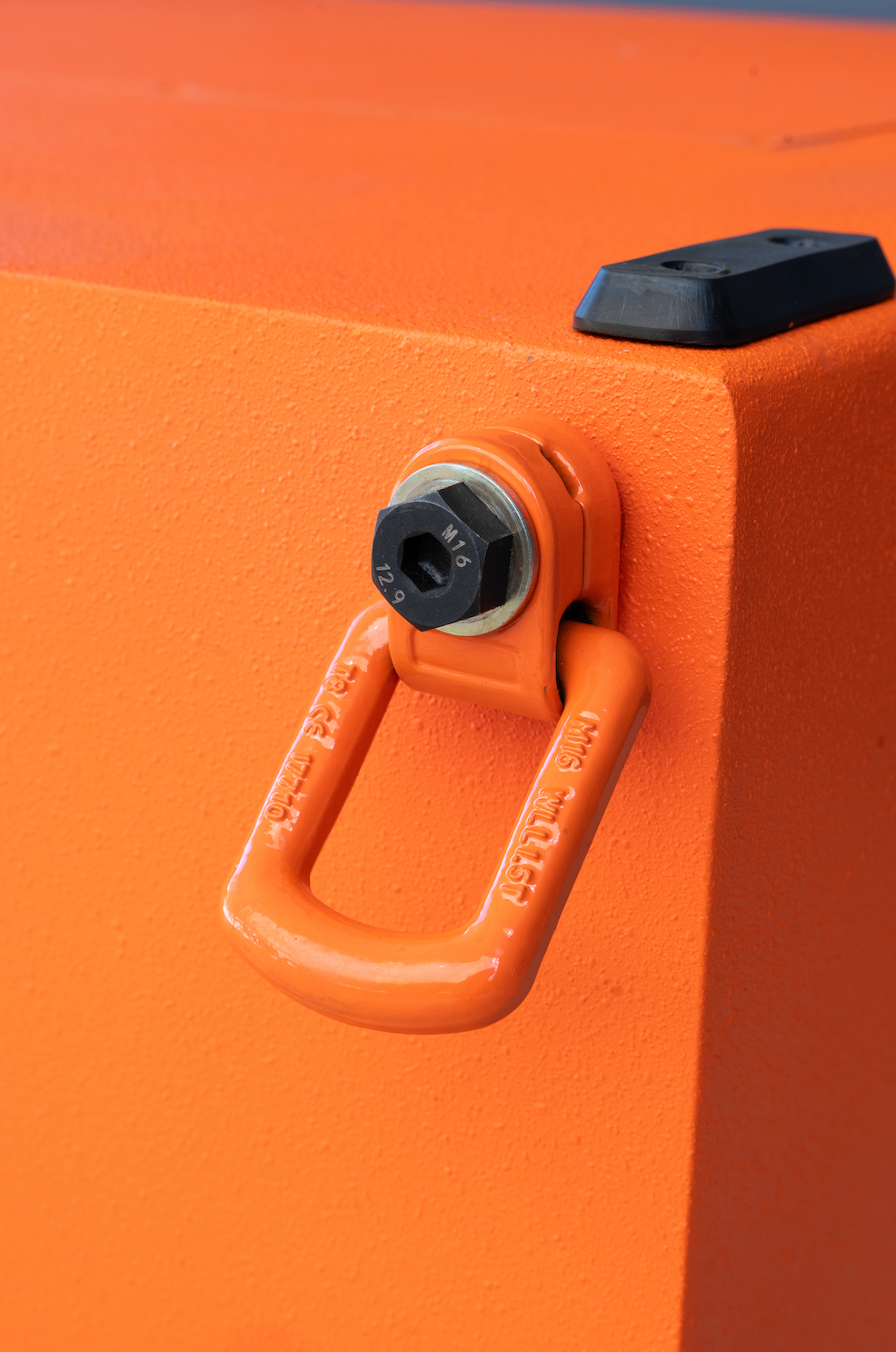

- Lifting Points
